4.5Mpa Industrial Chilled Water Plate Heat Exchanger For Central Air Conditioning

Brand Name : Tenkai

Model Number : UFP42A

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 1 wooden package

Price : Negotiate/Competitive

Payment Terms : L/C, T/T, D/P at sight

Supply Ability : 370pcs/Day

Delivery Time : Within 13 days

Packaging Details : Wooden Box Package

Material : Copper

Copper Design Temperature : -196 ℃-225 ℃

Copper MAX Design Pressure : 4.5 Mpa

Connection Mode : Male thread , Female thread, Flange, SAE Flange, Soldering

Warranty Period : 12 months

Structure : Plate Heat Exchanger

Max Flow : 18m³/h

Max Pressure : 4.5Mpa

Weld : Brazed

HS CODE : 8419500090

Application : Central Air-Conditioning

Contact Now

Central Air-Conditioning , Industrial Chiller Copper Brazed Plate Heat Exchanger



What is the copper brazed plate heat exchanger :



A copper plate heat exchanger is a type of heat exchanger that utilizes copper plates as the primary heat transfer surface. It consists of a series of parallel copper plates, typically arranged in alternating layers, with fluid channels in between. The copper plates are sealed together, and the fluid flows through the channels, allowing for efficient heat transfer between the fluids.



Copper Plates: The plates are made of copper due to its excellent thermal conductivity. Copper is chosen for its ability to facilitate efficient heat transfer between the fluids.





TYPE   B(mm)  C(mm)  D(mm)  E(mm)  THICKNESS(mm)  WEIGHT(Kg) MAX FLOW (m3/h)  DESIGN PRESSURE(Mpa)
UFP 10   77   42   155   119 9+1.25N 0.28+0.027N     4          3/4.5
UFP 20A   93   40   323   269 9+1.5N 1+0.09N     8          3/4.5
UFP 42A  121   68   332   279 10+1.53N 2.05+0.11N    18          3/4.5
UFP 62FA  120   63   527   470 10+1.98N 2.379+0.18N    18          3/4.5
UFP 62FB  120   63   527   470 10+1.98N 2.379+0.18N    18          3/4.5
UFP 95FA  182   92   609   519 12+2.05N 15+0.36N    42          3/4.5
UFP 95FB  182   92   609   519 12+2.05N 15+0.36N    42          3/4.5

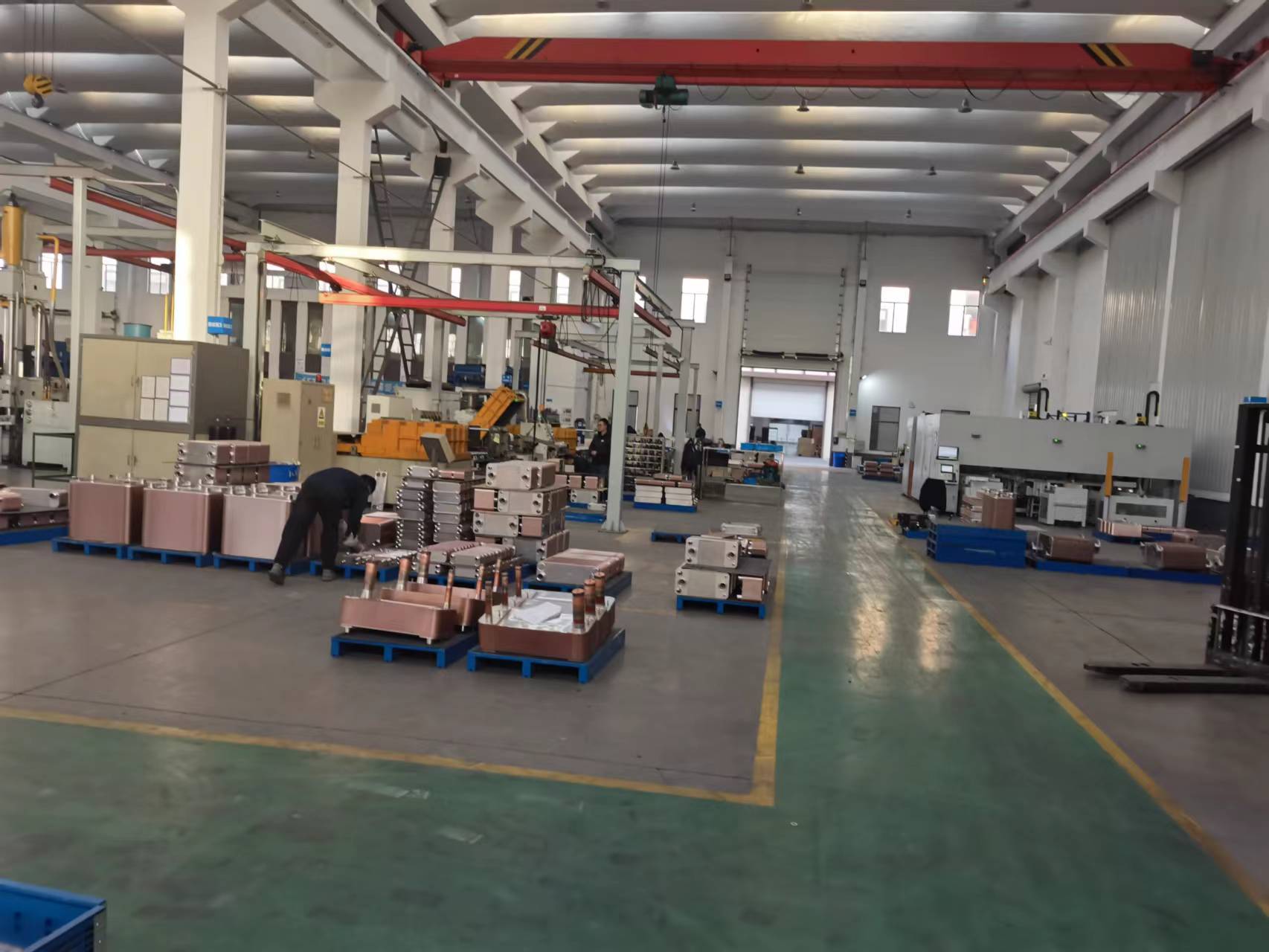

Workshop :



4.5Mpa Industrial Chilled Water Plate Heat Exchanger For Central Air Conditioning





Package Area :



4.5Mpa Industrial Chilled Water Plate Heat Exchanger For Central Air Conditioning
